ELKO-..LR WD/SR WD

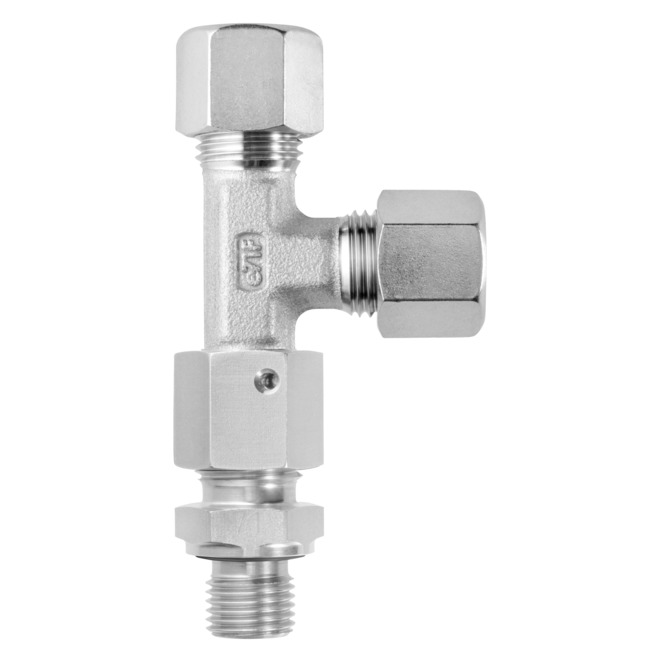

Adjustable L fittings with taper and O-ring

with male adaptor connector, profile sealing ring form E acc. ISO 1179-2

Type	(Cust.) Art. no.	PN	D1	G	L2	L3	CAD	Legend
Type	ELKO-10LR 1.4 WD	Art. no.	708.3674.270.20	PN	500.0 bar	D1	10.0 mm	G	1/4	L2	15.0 mm	L3	40.0 mm	CAD	Download	pcs
Type	ELKO-12LR 3.8 WD	Art. no.	708.3674.390.20	PN	400.0 bar	D1	12.0 mm	G	3/8	L2	17.0 mm	L3	42.0 mm	CAD	Download	pcs
Type	ELKO-15LR 1.2 WD	Art. no.	708.3674.534.20	PN	400.0 bar	D1	15.0 mm	G	1/2	L2	21.0 mm	L3	43.5 mm	CAD	Download	pcs
Type	ELKO-18LR 1.2 WD	Art. no.	708.3674.646.20	PN	400.0 bar	D1	18.0 mm	G	1/2	L2	23.5 mm	L3	50.0 mm	CAD	Download	pcs
Type	ELKO-28LR 1.1 WD	Art. no.	708.3674.850.20	PN	250.0 bar	D1	28.0 mm	G	1	L2	30.5 mm	L3	59.0 mm	CAD	Download	pcs
Type	ELKO-10SR 3.8 WD	Art. no.	708.3674.280.30	PN	800.0 bar	D1	10.0 mm	G	3/8	L2	17.5 mm	L3	45.0 mm	CAD	Download	pcs
Type	ELKO-12SR 3.8 WD	Art. no.	708.3674.390.30	PN	630.0 bar	D1	12.0 mm	G	3/8	L2	21.5 mm	L3	48.0 mm	CAD	Download	pcs
Type	ELKO-16SR 1.2 WD	Art. no.	708.3674.566.30	PN	420.0 bar	D1	16.0 mm	G	1/2	L2	24.5 mm	L3	55.0 mm	CAD	Download	pcs
Type	ELKO-20SR 3.4 WD	Art. no.	708.3674.708.30	PN	420.0 bar	D1	20.0 mm	G	3/4	L2	26.5 mm	L3	65.0 mm	CAD	Download	pcs
Type	ELKO-25SR 1.1 WD	Art. no.	708.3674.810.30	PN	420.0 bar	D1	25.0 mm	G	1	L2	30.0 mm	L3	72.5 mm	CAD	Download	pcs
